Establish a physical reference before mounting.
Smart Leveling · The first ROADROAM system
Read the lean. Know the move.
See the lean and the next move outside at the wheels.
Smart Leveling at a glance
One reference inside.
One live answer outside.
RLS01 reads the RV body in two directions, sends the live status by Bluetooth, and keeps the next move on the phone.
01 · Precision sensing
Know how the rig is sitting.
A 3-axis accelerometer and 3-axis gyroscope read front-to-back and side-to-side tilt as one picture.
A stable reference inside the RV
Measure the whole lean, not a single guess.
The sensor reads the RV body as one reference. The current specification lists ±0.25° display accuracy.
3 axisAcceleration sensing
3 axisGyroscope sensing
±0.25°Specified display accuracy
02 · User-friendly app
The math stays out of the way.

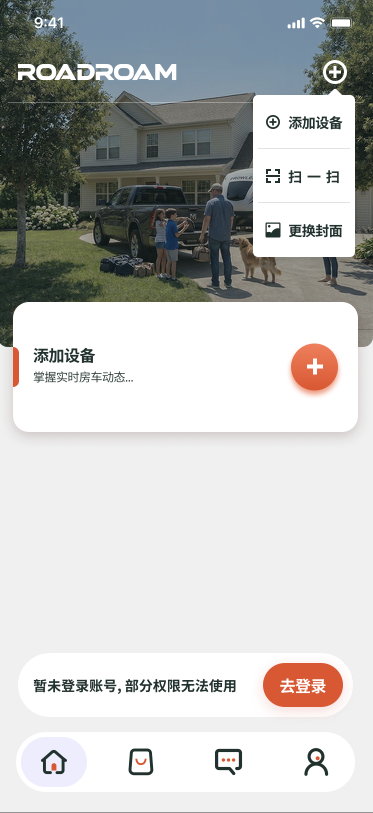

BLE 5.0 sends the live lean to the phone. No campsite internet is required for the device connection.
01See which direction is low.
02Read the estimated lift height.
03Follow the suggested block count and confirm live.

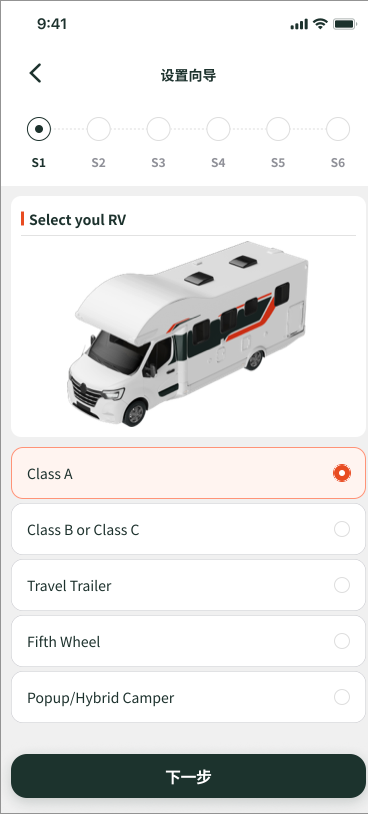

Current app flow. Vehicle dimensions, driver side, units, installation direction, display precision and sleep timing are set during onboarding.
03 · One person, one live view
Keep the answer outside.
The sensor stays inside. The live status stays with the person making the adjustment.
Real rig · real setup routineCalmer arrivals
Move. Check. Know.
See each change at the wheels and complete more of the setup alone.
SensorBluetoothPhone outside
04 · Installation & portability
Build the reference once.
First level the RV with a physical bubble level, then fix the bracket to a flat, stable interior wall away from doors and repeated vibration.
The base remembers the RV.
Use the App’s “Set level” action after the bracket and main unit are installed. Return the unit to that base whenever you need the saved RV reference.
Use four screws or the supplied 3M adhesive on a suitable surface.
Lift out the main unit for a table, shelf or other horizontal check.
05 · Hardware & kit
Small hardware. Published details.
The product file now defines the enclosure, power, connection and planned box contents.
RLS01 · Current specification
82 mm long. About 90 g.
High-strength UV-resistant ABS enclosure, rechargeable 2000 mAh battery and BLE 5.0 connection.
Dimensions33.5 × 82 × 31 mm
WeightApprox. 90 g
ConnectionBLE 5.0 · 20–30 m open area
Battery2000 mAh · approx. 28 h continuous
Typical standby useApprox. 45 days with sleep
Charging5 V Type-C · approx. 3 h
Operating range−30 to 60 °C
Humidity5–65% RH · non-condensing
Default sleep30 minutes · adjustable in App
In the planned box
- RLS01 main unit × 1
- Removable bracket × 1
- 3M adhesive × 1
- Mounting screws × 4
- Quick guide × 1
- Warranty card × 1
Compatibility
Motorized and towable RVs.
The specification covers Class A, B and C motorhomes, travel trailers and fifth wheels. Popup / hybrid remains a separate validation candidate.
Motorized

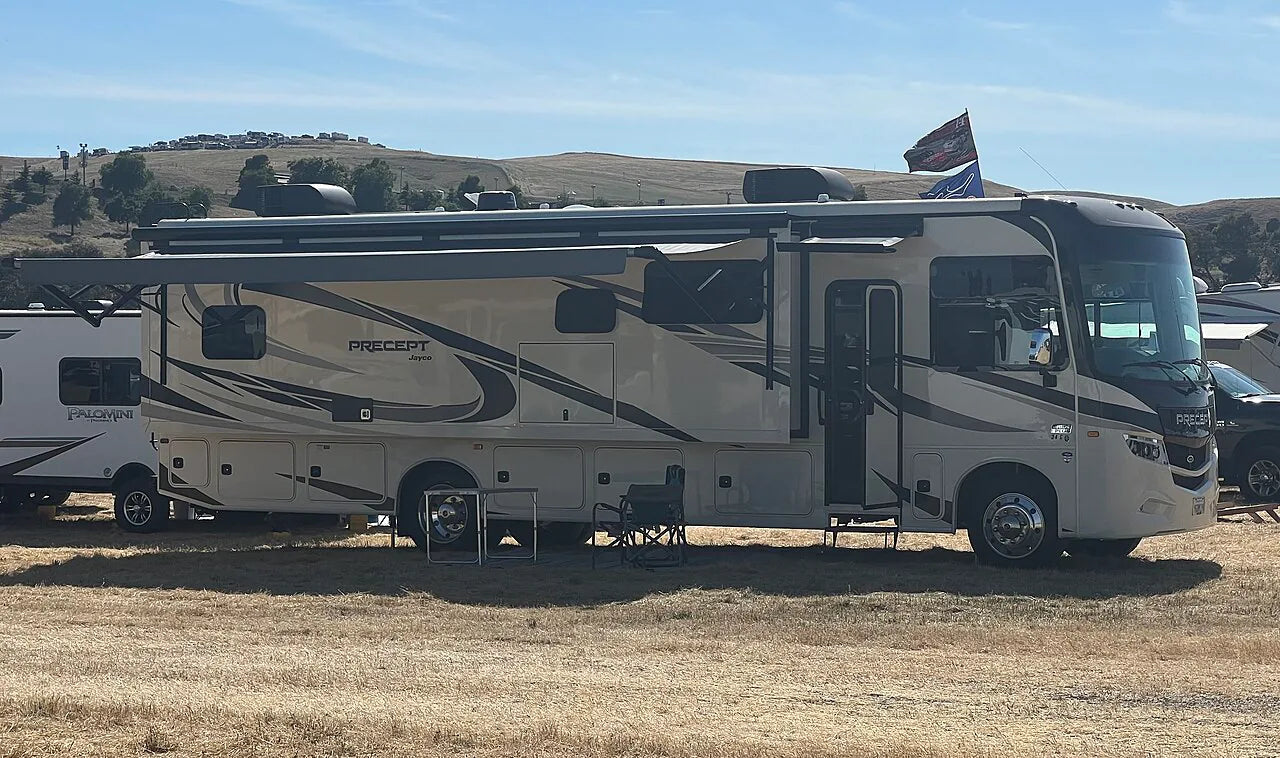

Class A
Motorized

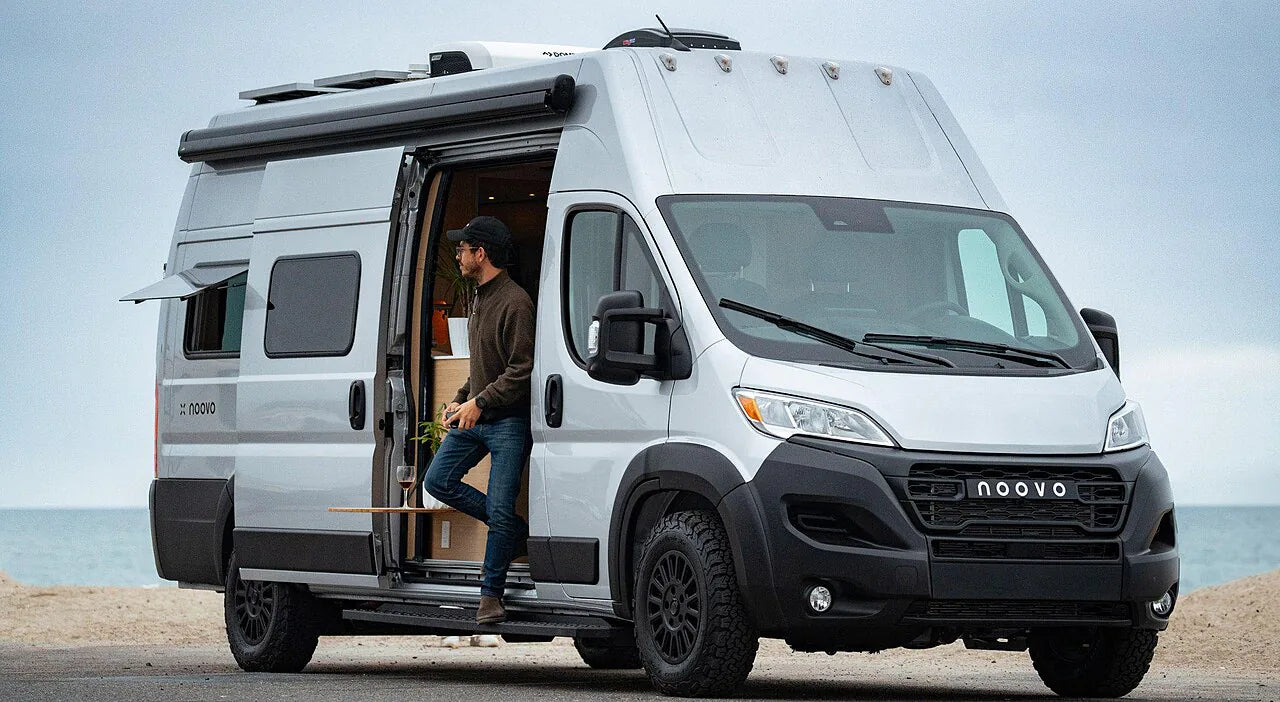

Class B
Motorized

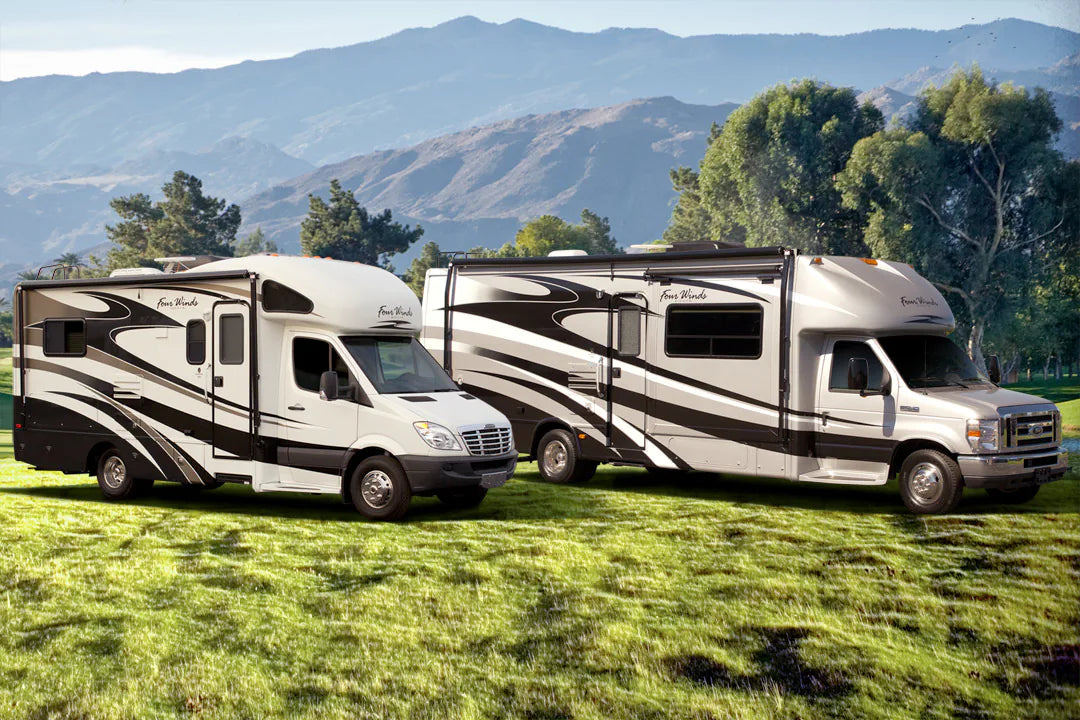

Class C
Towable
Travel Trailer
Towable

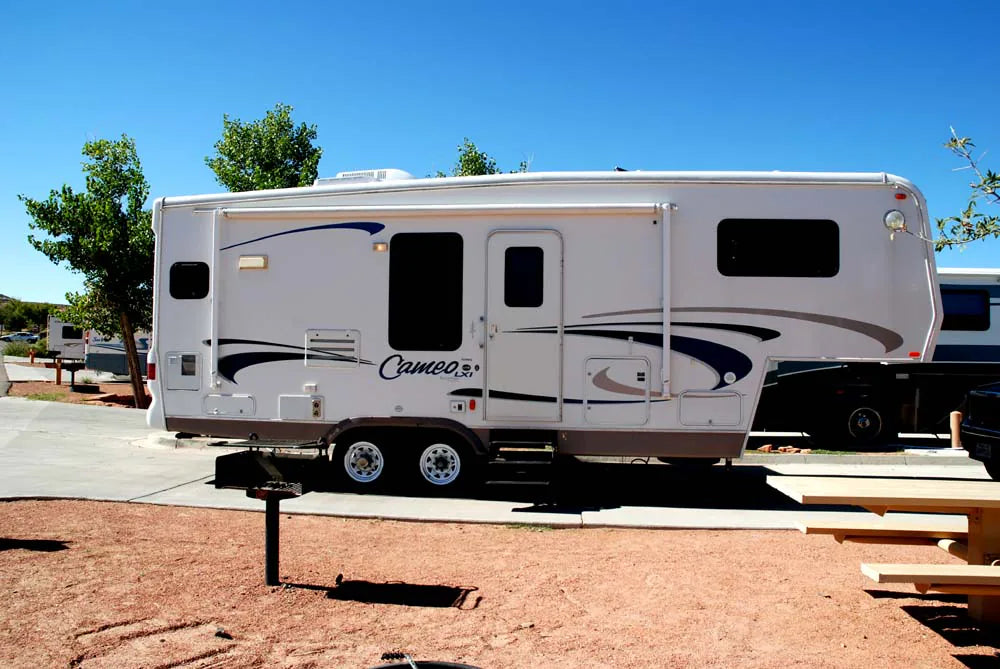

Fifth Wheel
Validation candidate

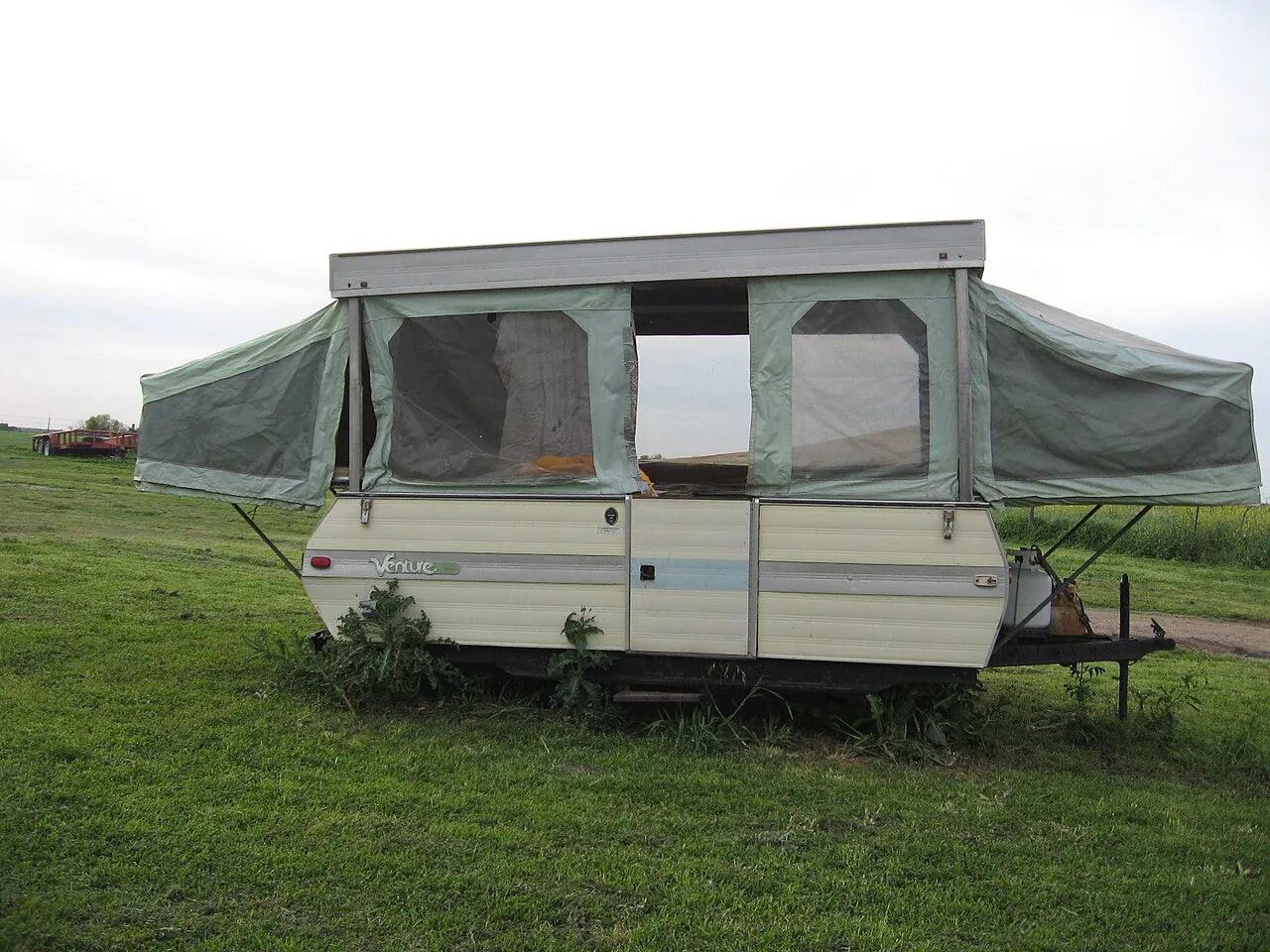

Popup / Hybrid
Product facts
What is specified. What still needs proof.
- SpecifiedRLS01 size, weight, sensor, BLE and power system
- SpecifiedInstallation, calibration and App setup flow
- NextPublish field-test conditions and third-party compliance evidence
The next proof is outside
Follow the field test.
Get measured specs, test notes, app progress, and launch timing.
